1. Introduction to IIDXOLLER Options

The DAOdesign team created this software based on years of experience.

If you encounter any problems during use or have other suggestions, please contact us via email or Twitter and we will actively improve it.

A variety of modes are pre-made, and different parameters can be set in different modes, which is convenient and quick.

2. Download

IIDXOLLER Options V3.2

Tip

Please use it after completely decompressing it, and do not run it directly in the compressed package.

3. Firmware Burning

1. USB type-B ports 1P and 2P must be connected at the same time
2. Click the Open button
3. Select the SS900_RED-LMS_xxxxx.skystar firmware in the folder
4. Click the Update button
5. Complete

Caution

• During the upgrade process, be sure to keep the USB connected. If the USB type-B is disconnected during the upgrade process, the main control PCBA may not be able to burn the firmware again.
• If it prompts that the burning fails, please burn again.

4. Usage Guidelines

IIDXOLLER Options provides powerful parameters that can be customized according to your preferences.

It can already adapt to most IIDX games under full default settings.

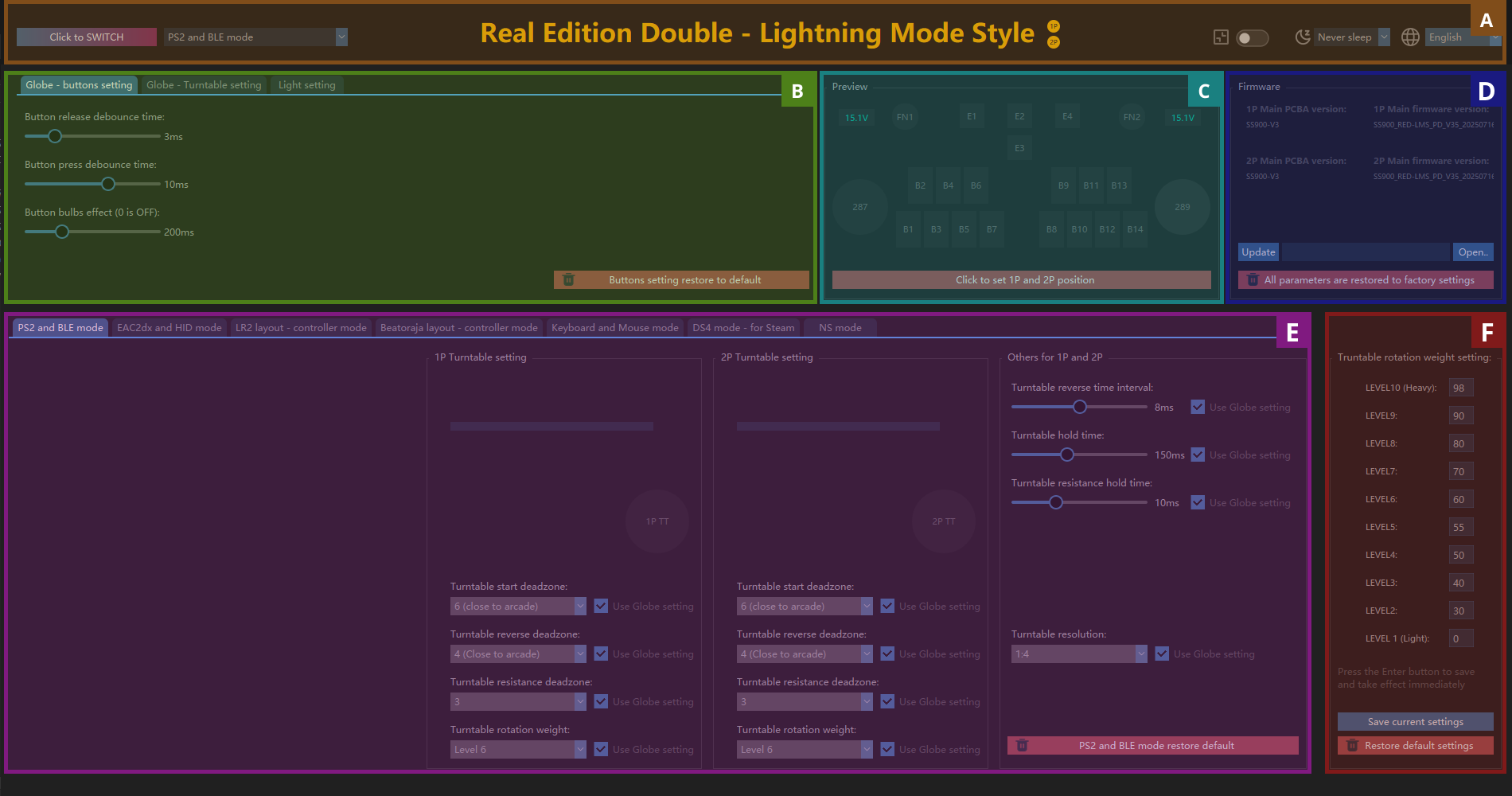

4.1 Software Interface

Area	Function
A	Mode switch, sleep mode, language
B	Global function settings
C	Preview Window
D	Firmware preview, firmware burning
E	Mode Settings
F	Turntable weight settings

4.2 Mode Switch, Sleep, Language

Item	Description
A1	Mode switch button; select A2 first, then click the button to apply
A2	Mode list
A3	Whether 1P is connected; displayed in gray if not connected
A4	Whether 2P is connected; displayed in gray if not connected
A5	Ignore Windows scaling; if 125%, 150%, or 200% is set in Windows, force display at 100%
A6	Sleep function; after setting, RED-LMS will turn off all lights after 1–10 minutes. Press any button or rotate the turntable to restore lights
A7	Select your preferred language; languagepack.xml can be freely modified to add your own language

4.3 Global Function Settings

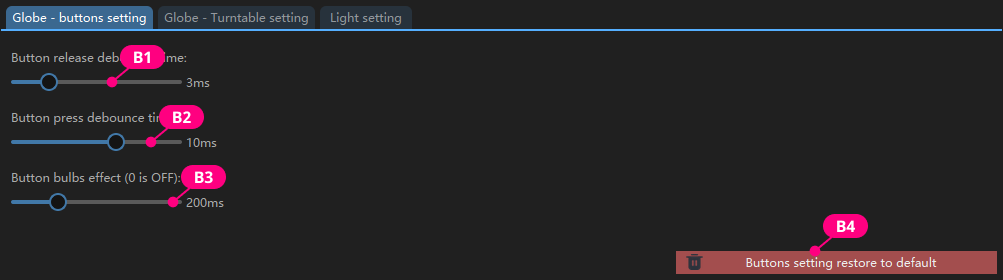

4.3.1 Global - Button Settings

Item	Description
B1	Debounce time when microswitch is released; recommended default 3ms. If VX-01-1C22 or VX-01-1C23 microswitches show multiple responses, increasing this value may partially improve it
B2	Debounce time when microswitch is pressed; recommended default 10ms. If VX-01-1C22 or VX-01-1C23 microswitches show multiple responses, increasing this value may partially improve it
B3	Time for the button light to turn off after the key is released; typically recommended 0–200ms
B4	Restore button settings to factory defaults

Tip

• B1+B2 < 50ms; this is an estimated value. It is related to the maximum frequency of a single button; typically, a single button press speed is less than 20 times/second.
• For multiple responses from VX-01-1C22 or VX-01-1C23, increasing the B1+B2 time can alleviate some issues. If multiple responses still occur, it is recommended to replace the microswitch promptly.

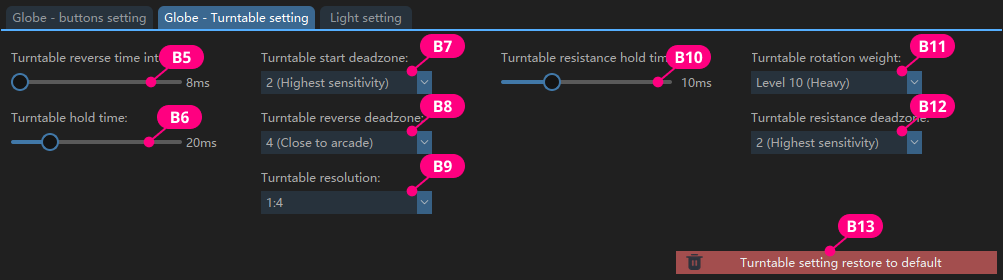

4.3.2 Global - Turntable Settings

It looks a bit complex, but in practice, B7 and B8 are the most commonly adjusted.

Item	Description
B5	Turntable pullback time interval. Only when using EZ2ON and the turntable is set to 2 key values, set to 8ms or higher; otherwise, inputs may be missed with high-speed turntable in EZ2ON. Recommended default: 0ms
B6	Recommended value: 20–100ms; smaller values require faster speed to trigger the turntable; larger values allow slower speed. Recommended default: 100ms
B7	Can be understood as sensitivity; smaller values mean higher sensitivity. The value represents how many degrees the turntable needs to turn to output a value. Recommended default: 6 (our testing finds 6 closest to arcade feel); can be fine-tuned. Scratch-focused players can set to 2
B8	Pullback sensitivity; smaller values mean higher sensitivity. Represents how many degrees the turntable needs to turn back to output a value. Recommended default: 4; can be fine-tuned
B9	At 1:2, lower turntable speed can trigger fast scrolling in the song selection menu; at 1:4, higher speed is needed. Recommended default: 1:4 (our testing finds 1:4 closest to arcade feel)
B10	Time for turntable damping to trigger. If too small, no damping effect when rotating slowly; at critical speed, turntable feel may feel jagged. Recommended default: 40ms
B11	Current damping level used by the turntable. Uses the mapping values from the F area
B12	Represents how many degrees the turntable must rotate before damping takes effect. Larger values require more rotation. Try values between 2–16
B13	Restore turntable settings to factory defaults

Tip

• In EZ2ON, it is recommended to use keyboard mode or DS4 mode, where the turntable reverse time interval can be independently set to 8ms without affecting global settings.
• If B6=10ms and turntable damping is set high, repeated output in the same direction is possible. Side effect: at slow speeds, the turntable will not respond.

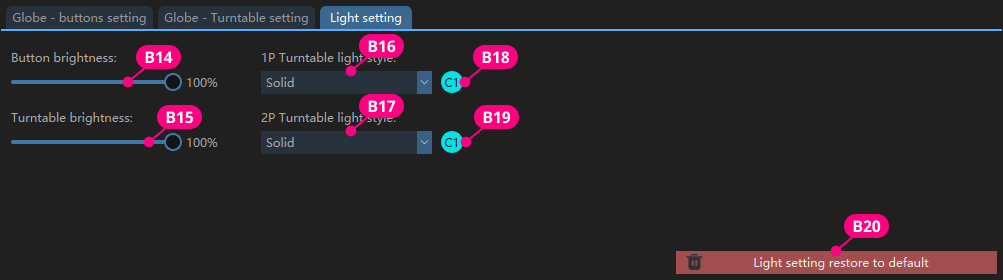

4.3.3 Global - Light Settings

Item	Description
B14	Set button light brightness
B15	Set turntable light brightness
B16, B17	Select turntable light effect
B18, B19	Click C1 or C2 to set the corresponding turntable light color. Cannot set rainbow color
B20	Restore light settings to factory defaults

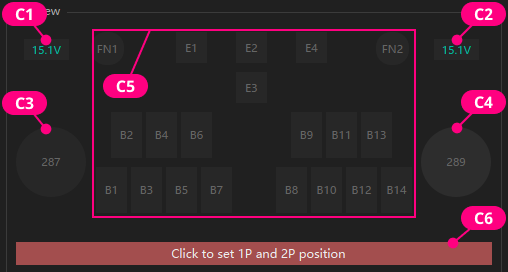

4.4 Preview Window

Item	Description
C1, C2	Displays the voltage provided by the current PD power supply. 20V, 15V are recommended operating voltages; 12V can be used long-term; 9V works but is not recommended for extended use; 5V electromagnetic damping will not work; 0V means no PD power supply is connected
C3, C4	Raw values of turntable data; not involved in actual output
C5	Displays the currently pressed button
C6	Switch the physical positions of 1P and 2P. Not recommended to click unless replacing the main control PCBA

Tip

• Based on our experience, the Anker 140W PD power supply (with 3 Type-C ports and 1 Type-A port) can simultaneously provide 20V when two Type-C cables are connected.
• Recommended: one 140W PD power supply, or two 45W PD power supplies.

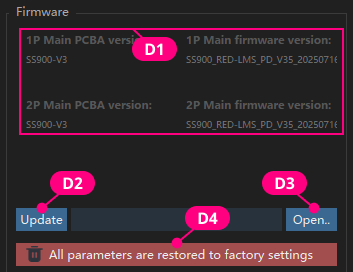

4.5 Firmware

Item	Description
D1	Displays the current hardware version and firmware version
D2	Click to burn firmware
D3	Click to open window and select the firmware to burn
D4	Restore all parameters to factory settings (does not affect product lifespan)

Caution

Do not disconnect the USB type-B interface during firmware burning. Otherwise, the motherboard PCBA may be damaged and cannot be repaired.

4.6 Modes

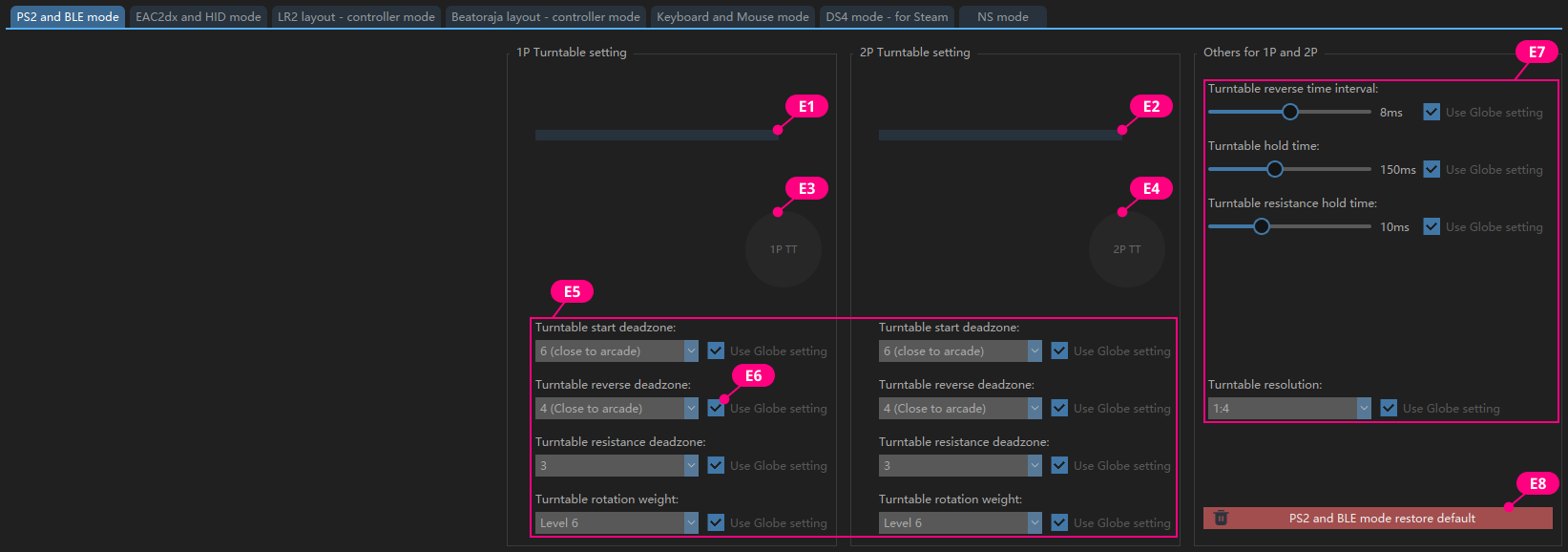

4.6.1 PS2 and BLE Mode

Use this mode when playing on PlayStation2, in combination with BE2PS.

Use this mode when playing beatmania IIDX ULTIMATE MOBILE, in combination with BE2BT.

Item	Description
E1, E2	Displays the absolute value of the X-axis output of the current 1P and 2P turntables
E3, E4	Simulates the output of 1P and 2P turntables in the game
E5	Independently set 1P and 2P parameters in this mode
E6	Checked means use global settings; unchecked means ignore global settings and use parameters set in this mode
E7	Set common parameters for 1P and 2P
E8	Restore current mode to default values

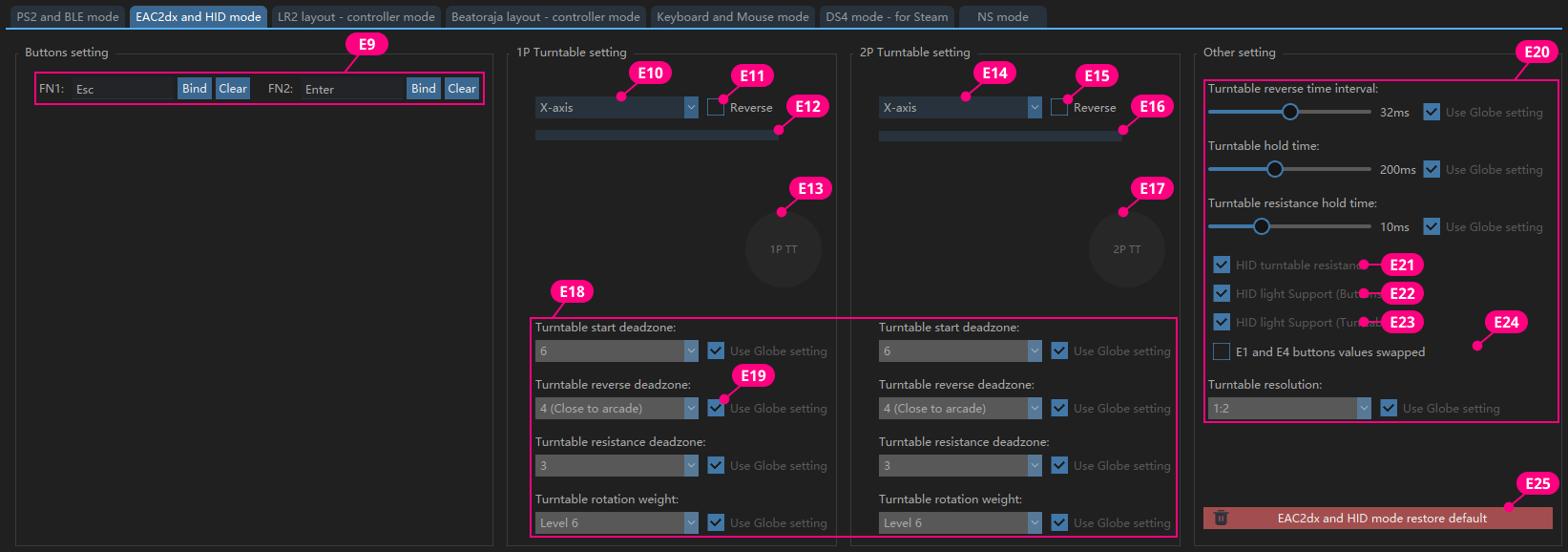

4.6.2 EAC2dx and HID Mode

Item	Description
E9	FN1, FN2 freely map any keyboard value
E10, E14	Specify 1P turntable and 2P turntable output X-axis or Y-axis
E11, E15	X-axis, Y-axis positive or negative direction
E12, E16	Real-time display of current X-axis and Y-axis values
E13, E17	Simulate the output state of the Turntable in the game
E18	Independently set 1P and 2P parameters in this mode
E19	Checked means use global settings; unchecked means ignore global settings and use parameters set in this mode
E20	Set common parameters for 1P and 2P
E21	Checked means receive spiceXXX damping data, which will automatically call LEVEL1–LEVEL10 values; unchecked uses the LEVEL specified by IIDXOLLER Options
E22	Checked means receive spiceXXX downstream button light data; unchecked means lights glow when button is pressed
E23	Checked means receive spiceXXX downstream turntable light data (single color only; if you want to use the ring light effect and color specified by IIDXOLLER Options, do not check)
E24	Double play on INFINITAS; select E1 or E4 as the Start key according to your preference
E25	Restore current mode to default values

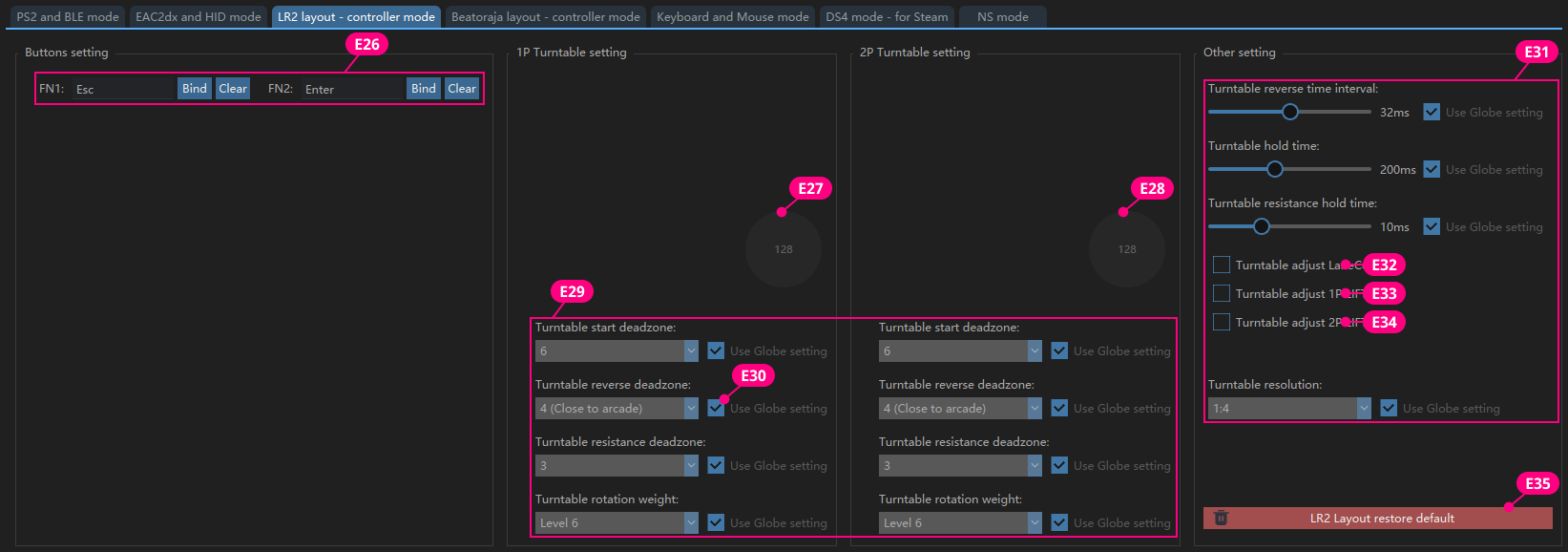

4.6.3 LR2 Mode

In this mode, the turntable output is a key value, with special optimizations for LR2.

Item	Description
E26	FN1, FN2 freely map any keyboard value
E27, E28	Simulate the output state of the Turntable in LR2
E29	Independently set 1P and 2P parameters in this mode
E30	Checked means use global settings; unchecked means ignore global settings and use parameters set in this mode
E31	Set common parameters for 1P and 2P
E32	Checked: press E1 and rotate 1P turntable to adjust 1P LaneCover
E33	Checked: press E2 and rotate 1P turntable to adjust 1P LIFT
E34	Checked: press E4 and rotate 2P turntable to adjust 2P LIFT
E35	Restore current mode to default values

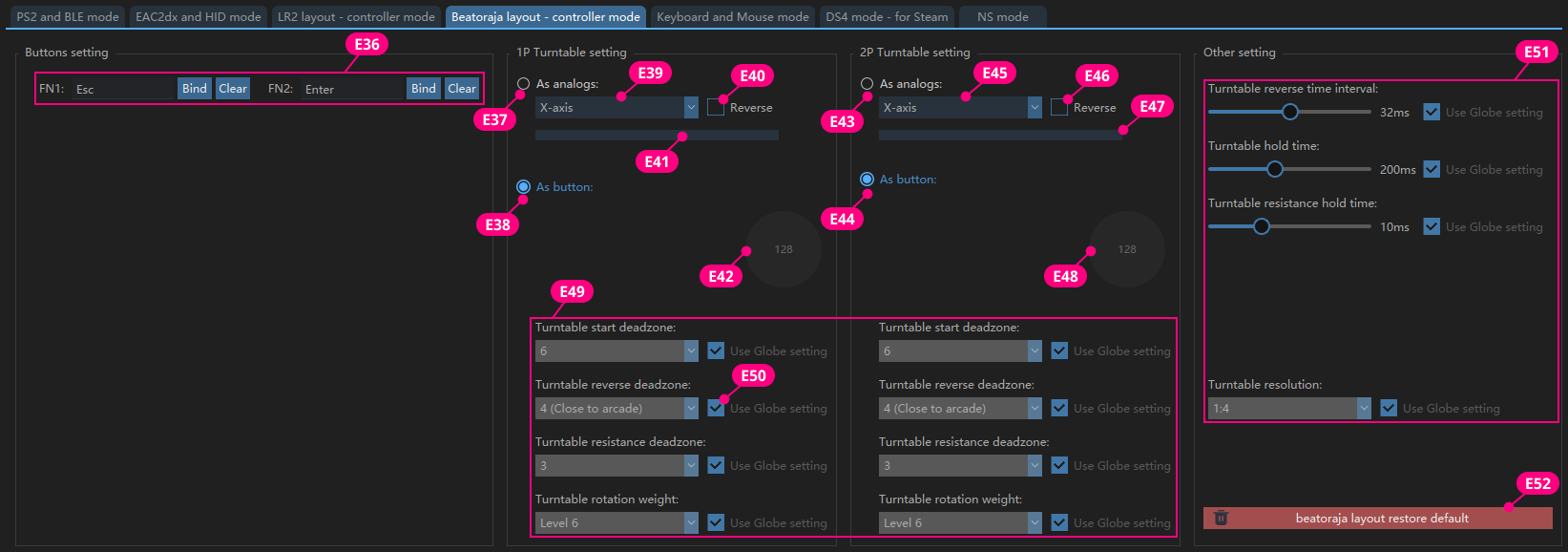

4.6.4 beatoraja Mode

In this mode, the turntable can output as key values or as an Axis.

Item	Description
E36	FN1, FN2 freely map any keyboard value
E37, E43	Turntable output as analog value
E38, E44	Turntable output as two different key values
E39, E45	Select Turntable as X-axis or Y-axis
E40, E46	Axis value increments or decrements
E41, E47	Real-time display of current X-axis and Y-axis values
E42, E48	Simulate turntable output state in beatoraja
E49	Independently set 1P and 2P parameters in this mode
E50	Checked means use global settings; unchecked means ignore global settings and use parameters set in this mode
E51	Set common parameters for 1P and 2P
E52	Restore current mode to default values

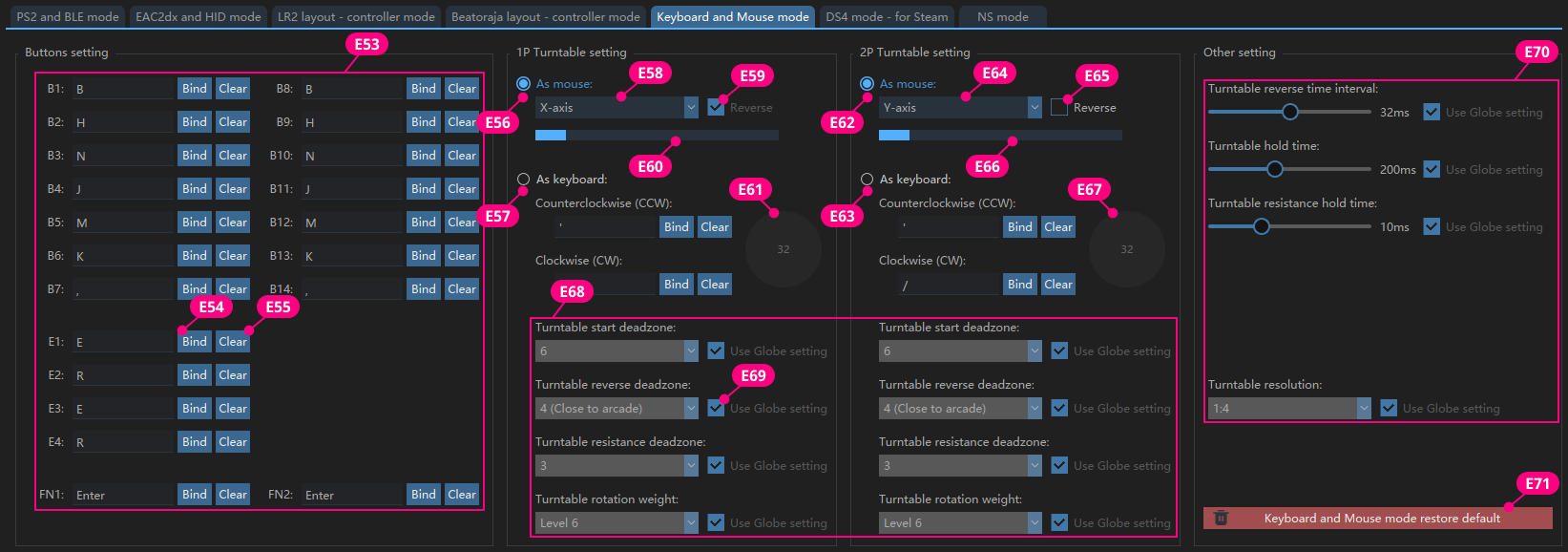

4.6.5 Keyboard & Mouse Mode

Item	Description
E53	Customize key values for all buttons
E54	Click the button, then press a keyboard key to complete custom key mapping
E55	Clear the currently bound key value
E56, E62	Turntable output as mouse
E57, E63	Turntable output as keyboard value; clockwise and counterclockwise can be mapped to the same key value
E58, E64	Select Turntable as X-axis or Y-axis
E59, E65	Axis value increments or decrements
E60, E66	Preview the increment/decrement of current turntable value
E61, E67	Simulate turntable output state in the game
E68	Independently set 1P and 2P parameters in this mode
E69	Checked means use global settings; unchecked means ignore global settings and use parameters set in this mode
E70	Set common parameters for 1P and 2P
E71	Restore current mode to default values

Tip

E57, E63: if mapped to the same keyboard value, it is recommended to increase the turntable reverse time interval to 8ms; too short an interval may cause some software to fail to recognize it.

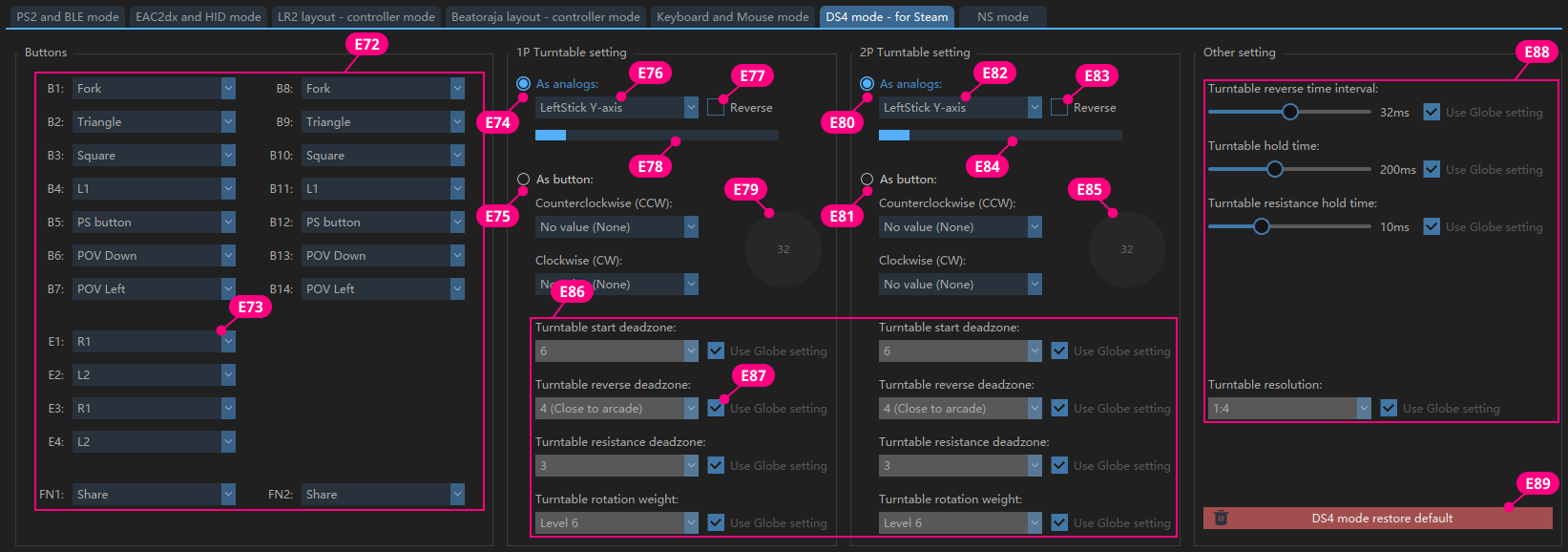

4.6.6 PS4 Controller Mode

In this mode, the simulated output is a DS4 controller, which can be correctly recognized on Steam.

Item	Description
E72	Customize key values; can be set to any key value in DS4
E73	Select key value from the dropdown menu; takes effect immediately
E74, E80	Turntable output as Axis
E75, E81	Turntable output as key value; can map 2 identical key values or different key values
E76, E82	Turntable selects the corresponding Axis
E77, E83	Axis value increments or decrements
E78, E84	Current Axis value output by the turntable
E79, E85	Simulate turntable output state in the game
E86	Independently set 1P and 2P parameters in this mode
E87	Checked means use global settings; unchecked means ignore global settings and use parameters set in this mode
E88	Set common parameters for 1P and 2P
E89	Restore current mode to default values

Tip

• E75, E81: if mapped to the same value, it is recommended to increase the turntable reverse time interval to 8ms; too short an interval may cause some software to fail to recognize it.
• E76, E82: if mapped to an Axis, button mapping cannot be mapped to an Axis.

4.6.7 NS Mode

This mode will be added in the future.

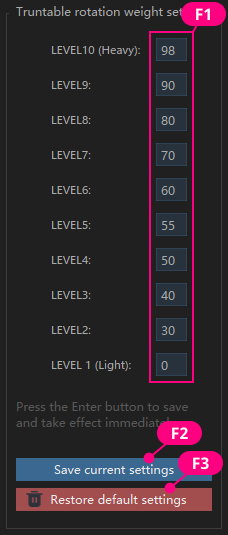

4.7 Turntable Damping Mapping

Turntable weight is a global setting. You can freely enter values from 0–100 based on your preference.

Item	Description
F1	Damping number input field; larger values mean greater damping
F2	Click to save the current value; pressing Enter also saves
F3	Restore factory default values

Tip

• If you want constant damping, set LEVEL1–LEVEL10 to the same value.
• If you want a mix of damping and no damping, set LEVEL1–LEVEL5 to zero and LEVEL6–LEVEL10 to the same value.
• Feel free to set as you prefer.
